SJU06-Wind Pressure Sensor

UMS series products are universal multifunctional sensors. There are many types of sensors in this series. They use the standard 485 universal protocol to transmit data to the data processing center. The sensor type can be flexibly selected according to needs. They are small in size and easy to install. They can monitor environmental parameters and parameters in the pipeline. The data compatibility of this series of sensors is good. Wind pressure sensors are divided into screen-type and screenless types according to the display mode.


Product parameters and performance
ModelSJU06 D10SJU06 D10S

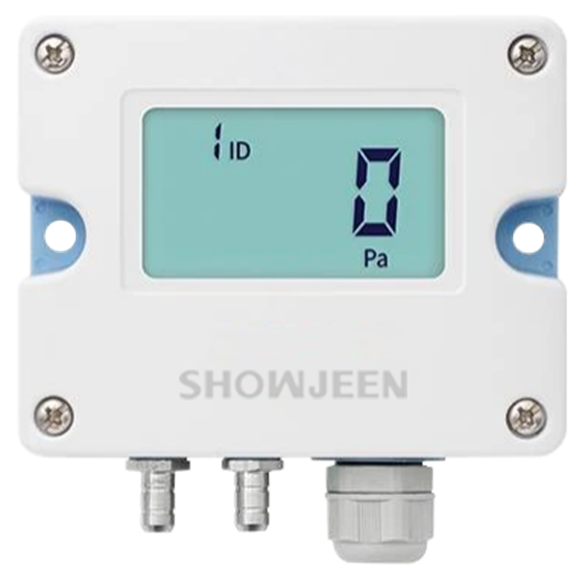

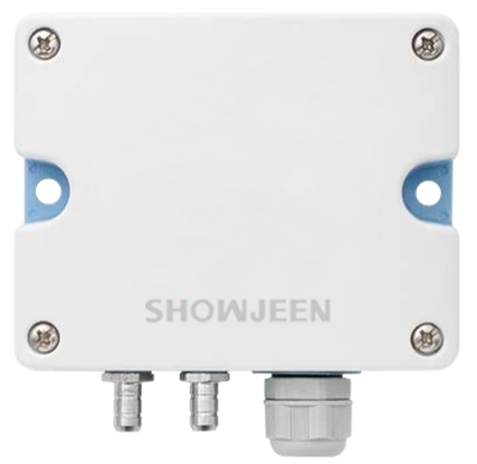

Product Image





Measurement objectWind pressureWind pressure
Measuring range

±100Pa,±1000Pa,±10000Pa

Measurement accuracy±1%F.S
Overload pressure5Kpa(±100Pa),10Kpa(±1000Pa),80Kpa(±10KPa)
Rated voltage12-30VDC,16-30VDC
Output signalRS485
External load0-5/10VDC\≥50KΩ;4-20mA\≤250Ω
Work Environment-40℃-70℃
