UMS series products are universal multifunctional sensors. There are many types of sensors in this series. They use the standard 485 universal protocol to transmit data to the data processing center. The sensor type can be flexibly selected according to needs. They are small in size and easy to install. They can monitor environmental parameters and parameters in the pipeline. This series of sensors has good data compatibility. Wind speed sensors include wall-mounted and pipeline-mounted according to the installation method, and are divided into screen-mounted and screenless types according to the display method.

Product parameters and performance

Model	SJU05E10	SJU05E10S	SJU05D10	SJU05D10S

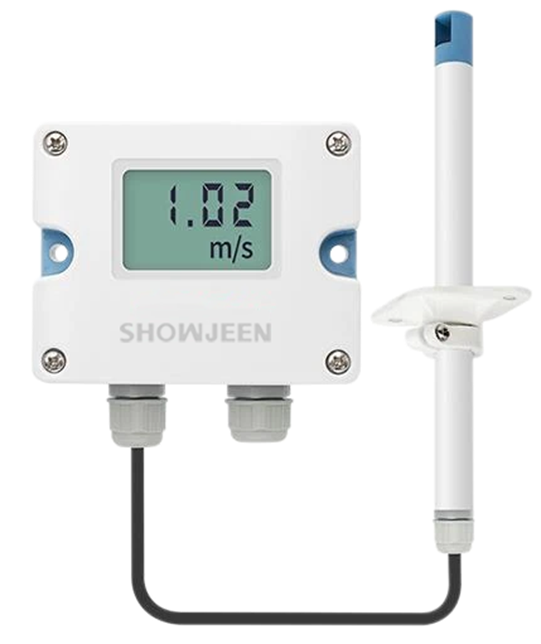

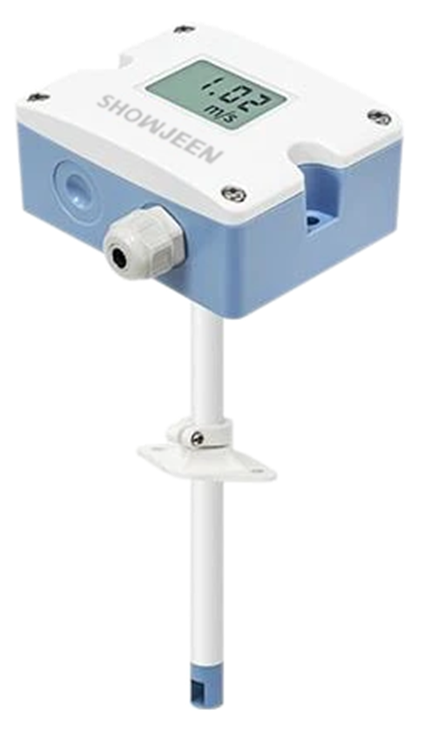

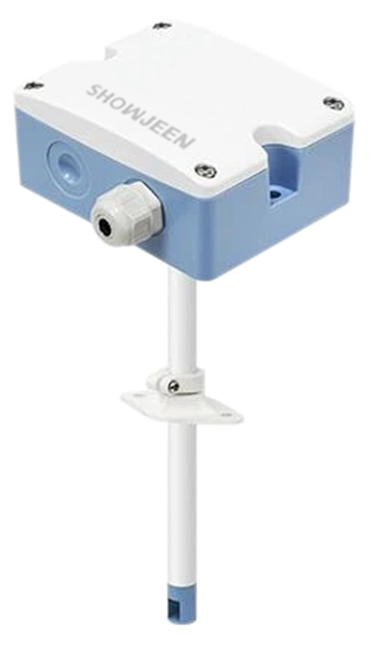

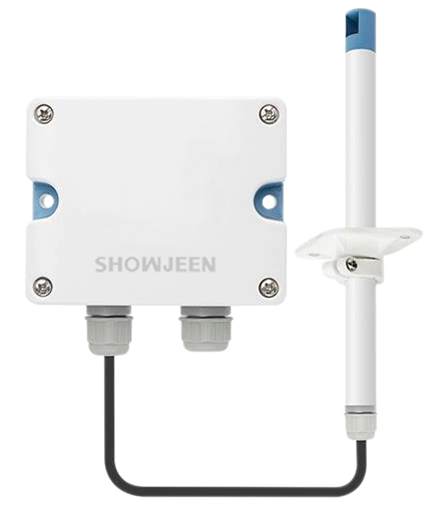

Product Image
Measurement object	Wind speed
Measuring range	0-10m/s，0-15m/s，0-20m/s，0-30m/s，Optional
Measurement accuracy	±(0.2m/s+3%of mv)(20℃，45%RH and1013hPa)
Rated voltage	24V AC/DC±20%
Output information	0-10VDC/4-20mA(Optional)
Output Load	≤500Ω（Current Type），≥2KΩ（Voltage Type）
Work Environment	-10℃ - +60摄氏度
