SJU01-Temperature and humidity sensor

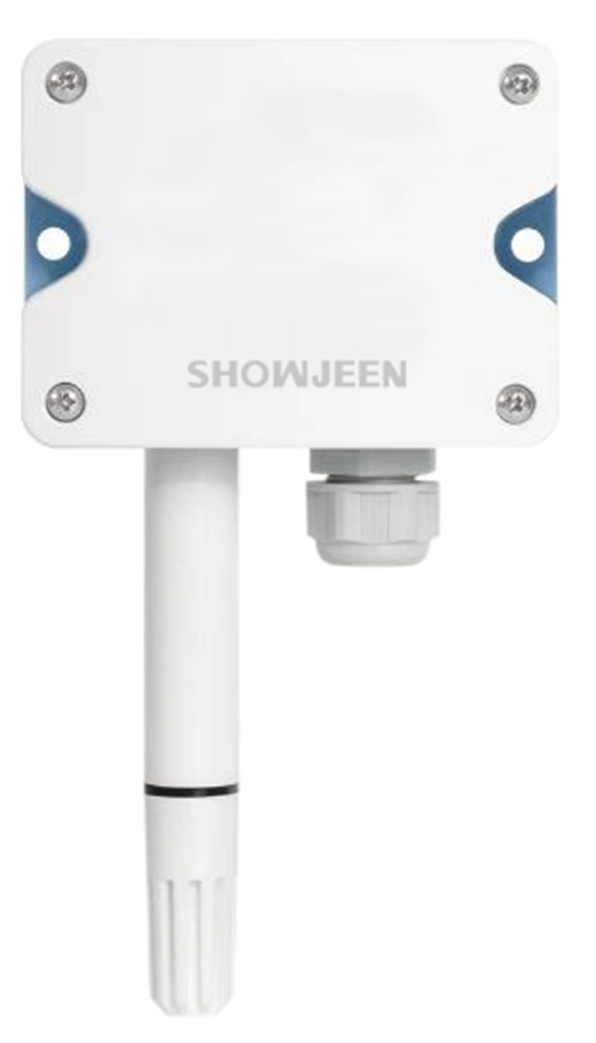

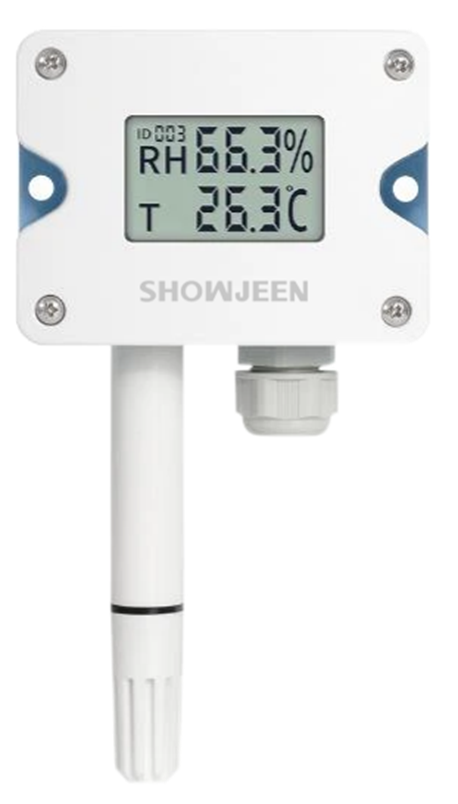

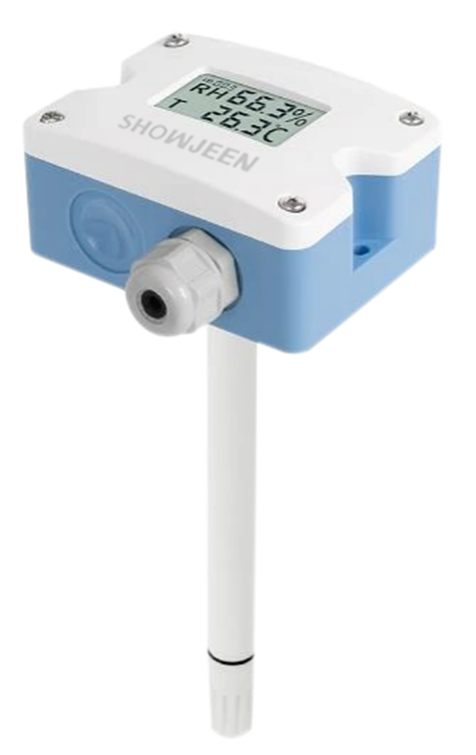

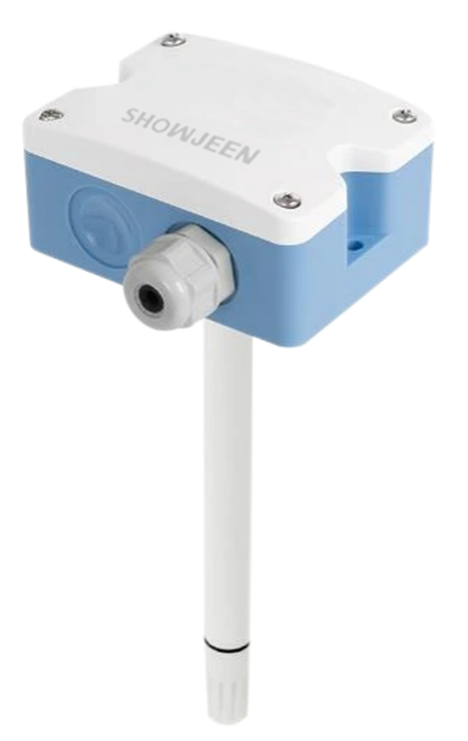

UMS series products are universal multifunctional sensors. There are many types of sensors in this series. They use the standard 485 universal protocol to transmit data to the data processing center. The sensor type can be flexibly selected according to the needs. They are small in size and easy to install. They can monitor environmental parameters and parameters in the pipeline. The data compatibility of this series of sensors is good. Temperature sensors include wall-mounted and pipeline-mounted according to the installation method, and are divided into screen-mounted and screenless types according to the display method.

Product parameters and performance
ModelSJU01E20SJU01E20SSJU01D20SJU01D20S
Product Image





Measurement objectTemperature, relative humidity
Measuring rangeTemperature: -20℃-60℃; Relative humidity: 0%-100%
Measurement accuracy

Temperature-digital sensor: ±0.3℃@0-60℃; thermal resistance: typical ±0.2-0.4℃@25℃;

Relative humidity: 3%@20℃ & 20-80%RH

Rated voltage15-35V  DC24V  AC±20%
Output signal4-20mA,0-10VDC
Response time≤10s (20℃,Slow air flow)
Work Environment-20 - 60℃,5%-95%RH(Non-condensing)
Protection levelIp65
